Beatus C108 Window System — AMAA 101 Test Report Summary

In high-standard architectural projects, windows are not just visual elements—they must stand strong against extreme weather and meet demanding performance benchmarks. We are proud to announce that the Beatus Casement + Fixed Window System (Model C108) has officially passed the AAMA/WDMA/CSA 101/I.S.2/A440-17 (NAFS 2017) test, one of the most reputable performance standards for window systems across North America.

This certification positions Beatus products among those that comply with North America's most rigorous standards for window performance, and highlights our readiness to support large-scale projects across North America, Australia, and beyond.

---

What Is NAFS 2017?

NAFS stands for the North American Fenestration Standard, jointly developed by AAMA, WDMA, and CSA. It provides a unified performance evaluation method for windows, doors, and skylights across the United States and Canada.

The test evaluates a window's ability to withstand:

Wind load resistance

Water penetration resistance

Air leakage resistance

Structural integrity

Ease of operation, forced entry resistance, and more

Passing the NAFS 2017 test means a product has been fully laboratory-tested and proven to meet the strict standards required by building codes and project specifications.

---

Tested System: Beatus C108 Casement + Fixed Window

Sample Key Specifications:

Product: Casement Window with Fixed Panel

Model: C108

Frame Size: 2400 mm (W) x 1600 mm (H) x 108.4 mm (T)

Operable Sash: 794 mm x 1474 mm

Thermal Break: Model C64, PA66GF25 insulation strip (by Technoform Bautec Suzhou)

Glazing: Triple-glazed structure with Low-E layers

Hardware: Imported from GIESSE, Italy

The window system was not weathered or conditioned prior to testing, and still delivered strong performance across all NAFS test items.

---

Partial Test Results

The Beatus C108 Window System has successfully passed all NAFS-2017 performance tests, demonstrating excellent results in key areas:

Air Leakage: Minimal air leakage, ensuring energy efficiency and comfort.

Water Penetration Resistance: High resistance to water infiltration, protecting against leaks and damage.

Structural Integrity: Strong and durable, withstanding extreme weather conditions.

Operating Force: Requires minimal force to operate, ensuring ease of use and accessibility.

Overall, it meets the highest standards for performance and reliability.

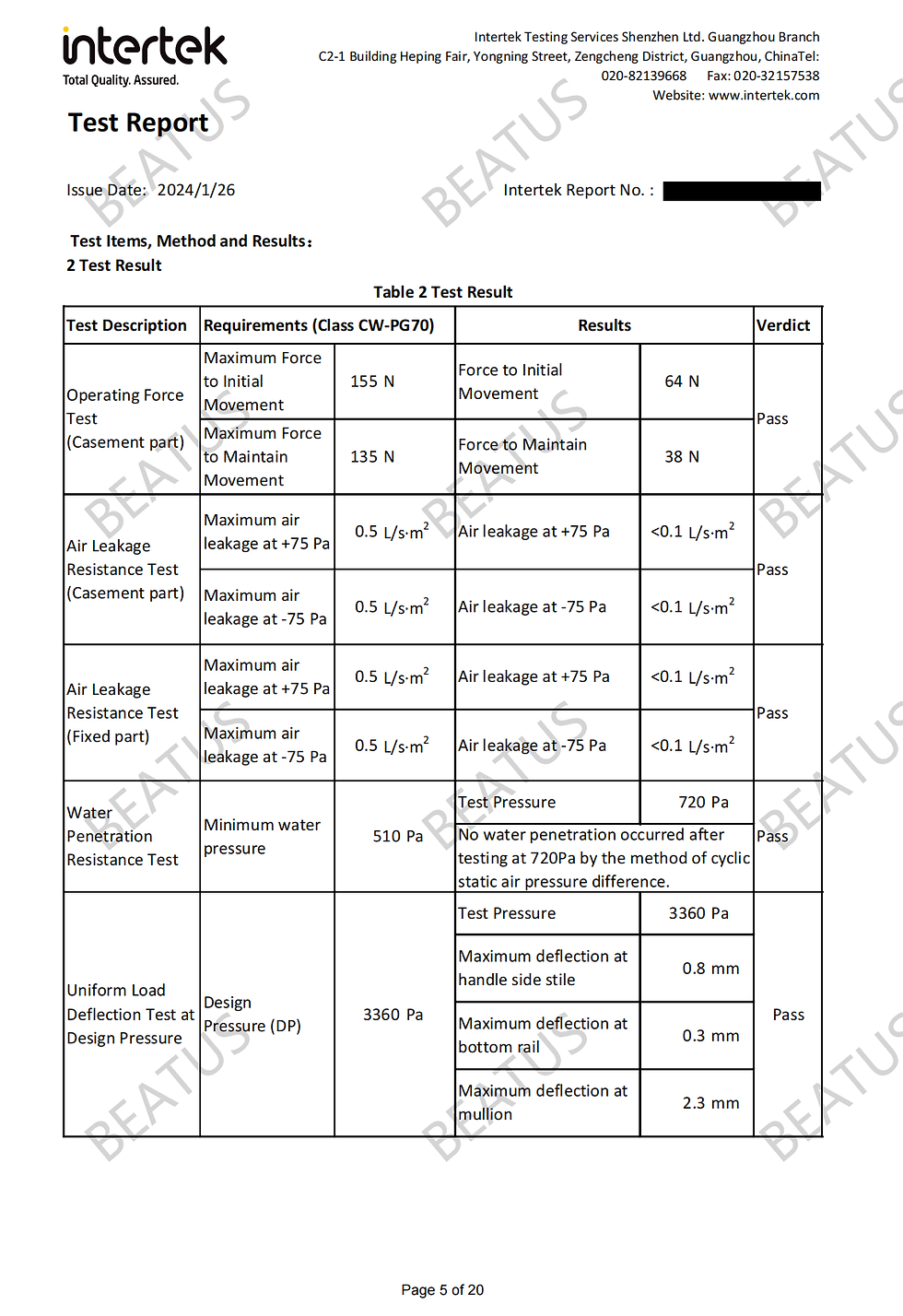

1. Operating Force Test (Casement Part)

Test Item	Requirement	Result	Verdict
Force to Initiate Movement	≤ 155 N	64 N	Pass ✅
Force to Maintain Movement	≤ 135 N	38 N	Pass ✅

Comment:

The casement window demonstrates excellent operability. Both the force to initiate and to maintain movement are far below the required limits, ensuring smooth and effortless operation.

2. Air Leakage Resistance Test

Casement Part

Pressure	Requirement	Result	Verdict
+75 Pa	≤ 0.5 L/s·m²	< 0.1 L/s·m²	Pass ✅
-75 Pa	≤ 0.5 L/s·m²	< 0.1 L/s·m²	Pass ✅

Fixed Part

Pressure	Requirement	Result	Verdict
+75 Pa	≤ 0.5 L/s·m²	< 0.1 L/s·m²	Pass ✅
-75 Pa	≤ 0.5 L/s·m²	< 0.1 L/s·m²	Pass ✅

Comment:

Air leakage performance is outstanding for both casement and fixed parts. All results are well below the maximum allowable leakage rate, indicating excellent airtightness and energy efficiency.

3.  Water Penetration Resistance Test

Requirement	Test Pressure	Result	Verdict
≥ 510 Pa	720 Pa	No water penetration observed	Pass ✅

Comment:

The unit exceeded the standard requirement by withstanding a pressure of 720 Pa without any water penetration. This confirms high resistance against wind-driven rain and harsh weather conditions.

4. Uniform Load Deflection Test at Design Pressure

Test Pressure	Location	Max. Deflection	Verdict
3360 Pa	Handle side stile	0.8 mm	Pass ✅
3360 Pa	Bottom rail	0.3 mm	Pass ✅
3360 Pa	Mullion	2.3 mm	Pass ✅

Comment:

Deflections under design pressure were minimal and well-controlled, demonstrating strong structural integrity and durability under load.

✅ Overall Comment:

All tested parameters meet or exceed the Class CW-PG70 performance standard. The product shows reliable performance in terms of operability, sealing, water resistance, and structural behavior, making it highly suitable for demanding residential and commercial building applications.

---

Beatus: Supply and Empowerment for Global Projects

At Beatus, we understand what matters to our B2B clients—compliance, technical performance, customization, and support. We go beyond export by offering:

🔧 Real testing with full traceability

📐 Products designed for local climate, building codes, and architecture

🚛 Strong coordination from factory to delivery and after-sales

📩 Request the full test report or consult with us for NAFS-ready window solutions.

We’re ready to support your projects from the ground up—with performance you can trust.
