RETRACTABLE PERGOLA

The Pergola systems we offer are designed to handle the diverse Australian climate, with options to guide rainwater off the front, sides, or into concealed rainwater guttering channels integrated into the pergola’s framework. The true flexibility of a Retractable Pergola System is evident when combined with additional features that control wind and rain ingress as needed. Our CT Pergola systems are built for year-round use, providing protection in most weather conditions, making them perfect for Australia’s varied environment.

RETRACTABLE
PERGOLA

Features

Made to measure, aluminium, wall mounted, electric retractable pergola systems, offering the best rain protection, whilst also having far higher wind resistance ratings over any standard knuckle arm awning. Fabric is deployed from a fully enclosed cassette and is under high tension to provide the very best taught fabric canopy. Some systems use a zipped channel either side for 4 sided tension on the canopy. Most of these systems will extend up to 6000mm in projection whilst able to cover any width by joining together.

Higher wind resistance than knuckle arm awnings
Able to deal with heavier rainfall at lower angles of pitch for the canopy
Larger projections (up to 6m)
Retain natural light levels with most fabric colours for better

Specifications

Max Frame

2700mm high x 6424mm wide (6 sashes)

Max Sash

2646mm high x 1500mm wide

Glazing Pocket

4mm to 18mm - Single or double glazed

Max Wind Rating

Up to N5

Max Water Rating

Up to 450pa

Max Bushfire Rating

BAL 40 - Tested and certified to perform to the requirements of AS1530.8.1

Options

LED lighting options

LED Line in the front profile

Gives uniform lighting and

a pleasant ambience after sunset.

LED Spots in the front profile

This brilliant lighting effect converts the room under the awning into an oasis of well-being in the evening

Operation options

manual operation

Operating an awning with a winding handle is simple. Insert the crank into the awning frame and turn it to extend or retract based on the direction. This manual operation offers reliable sun and all-weather protection.


radio-controlled motor

The intelligent control system adjusts the awning based on weather conditions such as sun, rain, wind, and vibrations, automatically extending or retracting for protection.

Hardwired motor

With a remote control, you can easily manage awnings, Shadeplus, light, and heat at the touch of a button. Radio-controlled awnings provide maximum convenience, allowing you to operate them from inside.

smart home

A smart home awning system offers sun protection and convenience through app or voice control. It optimizes energy use and prevents damage by adjusting automatically to the weather.

Color options

Frame colors

•traffic white, RAL 9016

•metallic aluminium, RAL 9006

•grey brown, similar to RAL 8019

•off-white textured finish, 5233

•stone grey metallic, 5215

•anthracite metallic, 5204

•Havana brown textured finish, 5229

•Non-standard RAL colours

Covers options

cover qualities

Highest possible sun protection with UPF 50+
Self-cleaning effect - water droplets absorb dirt particles and bead off the awning cover
Certified according to Öko tex standard 100 - free from dyes or chemicals that are hazardous to health
Bonded awning covers - excellent water, light and heat resistant prolongs the operating life of the fabric cover

Details

Awning fabric with a zip function As standard, the new guide rail is always designed with the lateral zip function on the fabric, meaning that there is no longer a light gap between the fabric and lateral guide rail. The zip function is possible up to an awning fabric size of 30 m2 .

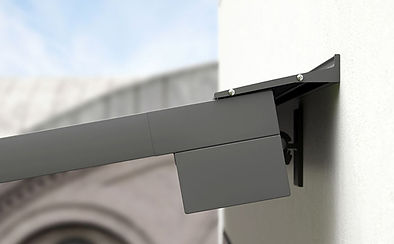

Various bracket versions enable mounting even on challenging facades, and a variety of different brackets are available for this purpose. The connection between the support and guide rail looks elegant and modern due to the use of a functional clip bracket.

Additional privacy and sun protection The ERHARDT PM can also be equipped with a vario-volance. For convenient operation of the awning, the PV module can be mounted on either side of the drop bar. This provides additional privacy and protection when the sun is low at the touch of a button. The fabric allows you to look out into your garden while protecting you from curious inward glances.

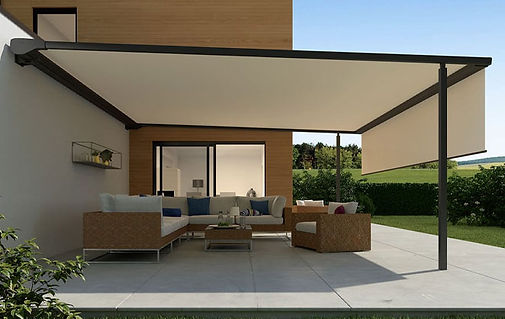

The pergola compact unites the graceful shape of the classic pergola with state-of-the-art product design and sophisticated technology.

The compact, space-saving awning system on slender support posts and with lateral guide tracks, which always keep the cover taut, is ideal for smaller patios.

Adjustable post For better water drainage, the front post of the pergola can be lowered from 20 to 40cm in no time at all.

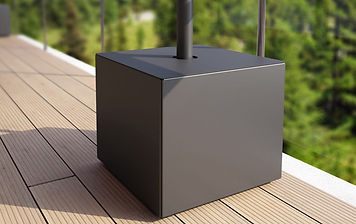

Stabilisation boxes Give your pergola reliable stability, when fitting the front posts to foundations is not possible or desired.

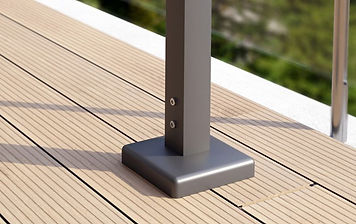

Square support / baseplate covers meets the demand for clear, angular shapes and a clean finish at the base of the front support posts

Stainless steel crank
