LIFT & SLIDE
DOOR SYSTEM
In Queensland, especially in high-end residential areas like the Gold Coast, homeowners are increasingly focused on seamless indoor-outdoor living. The large glass panels of lift and slide doors allow residents to fully enjoy the view while maintaining comfort and safety inside. For developers, this not only enhances the quality of the project but also adds more value for clients.
Features
01 Sealing
Special Sealing Device:
A special sealing device is designed for sealing dead corners in the corners.
02 Drainage
Systematic Drainage Design:
Features a stepped drainage structure in the lower frame and wind pressure-resistant drainage hole caps.
04 Durable
Anti-error design:
Optional anti-collision blocks, anti-collision limit devices, and reverse operation devices effectively protect hardware and enhance durability.
05 Safety
Hidden locking point and locking bracket:
Aligned smoothly with the profile for unobstructed passage. The locking mechanism ensures the door's safety when closed.
03 Operation
Durable Silent Components:
Made with stainless steel rails and a special pulley kit, ensuring durability and quiet operation while providing stable opening and closing performance.
06 Diversification
Various configurations are available: The screen door matchedwith the frameless SSD slide door can be selected. and thestainless steel high-permeability screen and imported high permeability screen can be selected to effectively prevent mosquitoes.
Product Parameters
LSD135L.N
Opening Sash Size & Weight
Width ≤3000mm
Height ≤3000mm
Weight ≤400Kg
Glass thickness ≤38mm
Acoustic performance GB/T 8485
RW up to 36dB
Waterproof performance GB/T 7106
Normal Lower Frame Up to Level 3
HD100B Up to Level 6
Air permeability performance GB/T 7106
Positive pressure Up to Level 8
Negative pressure Up to Level 8
Wind load resistance performance GB/T 7106
Standard Edging Up to 1500Pa
Reinforced Edging Up to 5000Pa
LSD145L
Opening Sash Size & Weight
Width ≤3000mm
Height ≤3000mm
Weight ≤400Kg
Glass thickness ≤48mm
Acoustic performance GB/T 8485
RW up to 37dB
Waterproof performance GB/T 7106
Normal Lower Frame Up to Level 3
HD100B Up to Level 6
Air permeability performance GB/T 7106
Positive pressure Up to Level 8
Negative pressure Up to Level 8
Wind load resistance performance GB/T 7106
Standard Edging Up to 1500Pa
Reinforced Edging Up to 5000Pa
LSD165L.N
.png)
Opening Sash Size & Weight
Width ≤3000mm
Height ≤3000mm
Weight ≤400Kg
Glass thickness ≤38mm
Acoustic performance GB/T 8485
RW up to 36dB
Waterproof performance GB/T 7106
Normal Lower Frame Up to Level 3
HD100B Up to Level 6
Air permeability performance GB/T 7106
Positive pressure Up to Level 8
Negative pressure Up to Level 8
Wind load resistance performance GB/T 7106
Standard Edging Up to 1500Pa
Reinforced Edging Up to 5000Pa
Glass Options
Energy Efficiency
The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.
Acoustic Glass
Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.
Safety & Security
Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.
Privacy Glass
Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.
Lift & Slide Hardware Options
Hardware Detail
Enhanced Security and Performance
The lift and slide door locking mechanism utilizes a speed-reducing drive to prevent handle rebound. Both the locking point and the drive are concealed within the door sash, enhancing safety. The handle drive structure automatically adjusts to ensure a snug fit without any wobbling.
![10月10日 (2)[00h00m00s-00h00m03s].gif](https://static.wixstatic.com/media/e12769_9f57f923f7674dabb42bfc28a4d01307~mv2.gif)

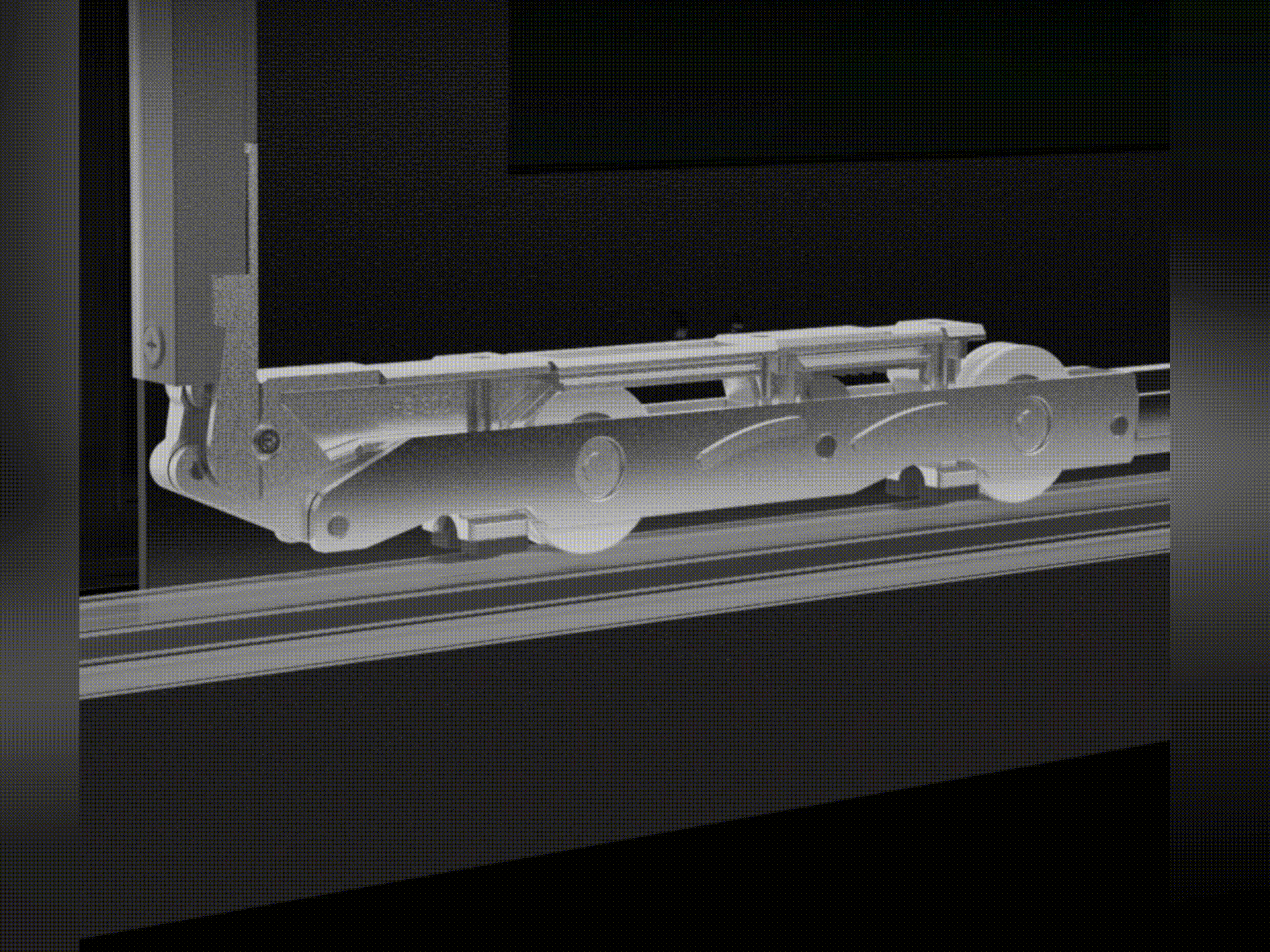

Sliding Door Rollers
The lift and slide rollers are precision designed, utilizing high-strength, long-lasting materials. The rollers can bear a load of up to 300 kg. Smooth and easy operation.
Screening Options
Mesh options
Tuff mesh
Made of metal material, strong anti-theft performance, and high protection level.
However, it has relatively low light transmittance, suitable for commercial and residential use.
Frame options
Retractable
Can be stretched and paired with high-transparency mesh to provide an unobstructed view.
HD Tuff Mesh
Made of metal material, strong anti-theft performance, and higher protection level. It improves light transmittance by 30% compared to standard tuff mesh, suitable for projects that balance design and safety.
Frame
Compatible with tuff mesh or HD tuff mesh, significantly enhancing safety and anti-theft performance.
High-Transparency Mesh
Made of PET metal material, with average anti-theft and protection capabilities. It offers excellent light transmittance and can be used for retractable screens, suitable for design-oriented projects.
