BALUSTRADE
RAILING SYSTEM

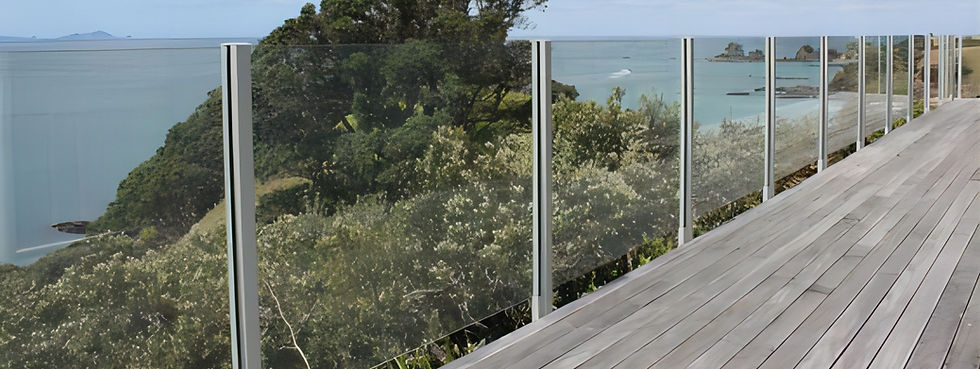

The metal glass railing posts are similar to Viewrail’s other rod railing and cable railing posts, but are simply created to work with glass clips rather than rod and cable infill. You should use two glass railing posts for every 4’ panel of glass for stair or deck railing.
BALUSTRADE

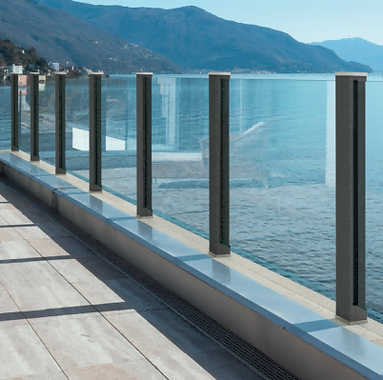

GLASS RAILING
Features
Balustrade glass railing is a modern guardrail product with excellent decorative properties. Glass railings are easy to install and provide the best safety.
Configurations
Available in a range of configurations, custom made andinstalled to your specification
Specifications
Max Frame
2700mm high x 6424mm wide (6 sashes)
Max Sash
2646mm high x 1500mm wide
Glazing Pocket
4mm to 18mm - Single or double glazed
Max Wind Rating
Up to N5
Max Water Rating
Up to 450pa
Max Bushfire Rating
BAL 40 - Tested and certified to perform to the requirements of AS1530.8.1
Color
Frame Color
Powder Coating
-
A tough and durable option allowing for a wide range of colours.
-
A choice or world leading suppliers of powder finishes;
-
Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
-
Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).
black
gold
gary
blue
blown
Anodising
You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.
Glass Color
white
blue
gray
green
black
Detail

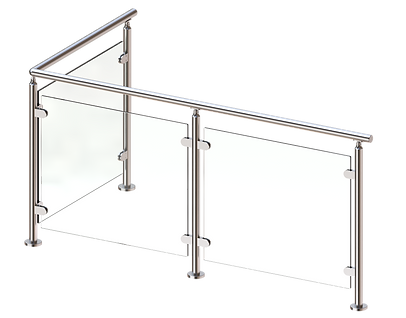

Corner Detail
Designed for: home use and
public places
Use: internal and external
Variations: floor or wall mounted
Applications: stairs, balconies and
balustrades
Material: AISI 316 and 304 stainless steel
Infill: glass from 8 to 17,52 mm
Upper finish: satin or polished stainless steel
Wall-Mounted Installation
.png)
Connection Detail
_edited_edited.jpg)
Connection Detail
Designed for: home use and
public places
Use: internal and external
Variations: floor or wall mounted
Applications: stairs, balconies and
balustrades
Material: AISI 316 and 304 stainless steel
Infill: glass from 8 to 17,52 mm
Upper finish: satin or polished stainless steel
Wall-Mounted Installation
Handrail system
Bracket on Glass
WB01
WB02
WB02
WB04
Handrial-Stainless Steel
Round slotted tube
wall flange
Connector
Adjustable elbow
90° elbow
End cap
Hardrail
Connector
Adjustable elbow
90° elbow
End cap
Case
