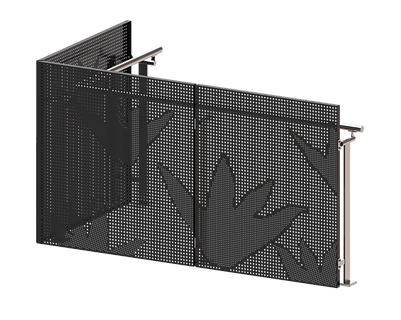

METAL PANEL
RAILING SYSTEM
Metal panel railing systems
were born from the need to protect the privacy.
The very simple texture creates a
pleasing effect to the eye without forgetting safety
METAL PANEL
RAILING
Features
•Ideal for home and public use;
• Easy to install, the panel is already
assembled;
• Variable design based on the types of
sheets;
• Ideal for use in windy places, it does not
suffer from the sail effect;
• No welding is required during installation;
• Customizable color and finish;
Configurations
Available in a range of configurations, custom made andinstalled to your specification
Specifications
Max Frame
2700mm high x 6424mm wide (6 sashes)
Max Sash
2646mm high x 1500mm wide
Glazing Pocket
4mm to 18mm - Single or double glazed
Max Wind Rating
Up to N5
Max Water Rating
Up to 450pa
Max Bushfire Rating
BAL 40 - Tested and certified to perform to the requirements of AS1530.8.1
Color
Frame Color
Powder Coating
-
A tough and durable option allowing for a wide range of colours.
-
A choice or world leading suppliers of powder finishes;
-
Finishing is provided by supplier accredited Alspec branches, as well as selected quality contractors.
-
Warranties are available. Depending on your finish option, you will receive a warranty ranging from 7 years (film and colour integrity) to 15 years (film and colour integrity).
black
gold
gary
blue
blown
Anodising
You may prefer a choice of anodizing, an electro-chemical treatment available in standard finishes, natural anodized and non standard, bronze and black.
Detail
Application with panels in line
with the posts.
Standard infill with round holes 20 mm.
Standard infill with 15 mm square holes.
Application with misaligned
panels and posts.

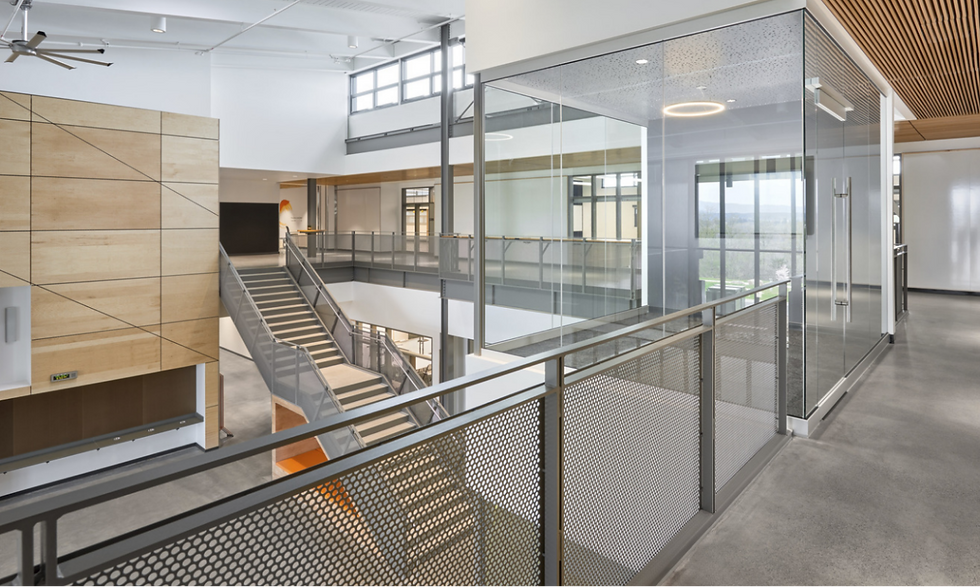

Case
