BI-FOLD
WINDOW SYSTEM

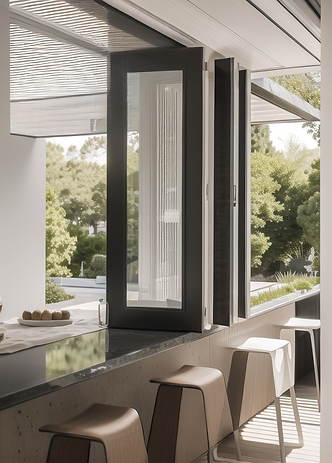

The addition of a bi-fold window to your kitchen or living areas will not only open up and connect you to your outdoor living spaces, but will also add value to your home.
Features
01 Flexible Design
Offers various opening methods based on spatial needs, accommodating different usage scenarios.
02 High Security
Equipped with a multi-point locking system that significantly enhances the overall structural security for peace of mind.
03 Functionality
Maximizes opening area, providing exceptional visibility and meeting users’ desires for natural light and views.
04 Excellent Sealing
Utilizes high-performance sealing materials to ensure superior air and water tightness, suitable for extreme weather conditions.
05 Aesthetic Appeal
Minimalist design with narrow frames enhances the overall appearance, seamlessly integrating into modern architectural styles, showcasing both style and quality.
06 Ease of Maintenance
Sashes can be fully folded to one side for convenient cleaning and regular maintenance, enhancing user experience.

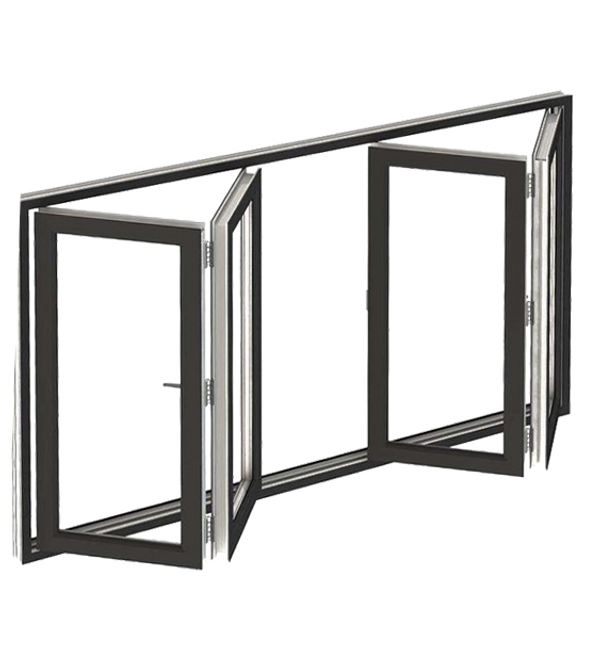

Configurations
Available in a range of configurations, custom made andinstalled to your specification
Glass Options
Energy Efficiency
The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.
Acoustic Glass
Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.
Safety & Security
Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.
Privacy Glass
Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.
Product Parameters
FD70
Opening Sash Size & Weight
Acoustic performance GB/T 8485
Width ≤1200mm
Weight ≤90Kg
RW up to 42dB
Height ≤2000mm
Glass thickness ≤38mm
Air permeability performance GB/T 7106
Waterproof performance GB/T 7106
Up to Level 8
Normal Lower Frame Up to Level 3
HD100B Up to Level 6
U value rating GB/T 8484
UW up to 1.4W/㎡k
Wind load resistance performance GB/T 7106
Standard Edging Up to 1500Pa
Reinforced Edging Up to 5000Pa
Hardware
Bi-fold Window Hardware
Hardware Detail

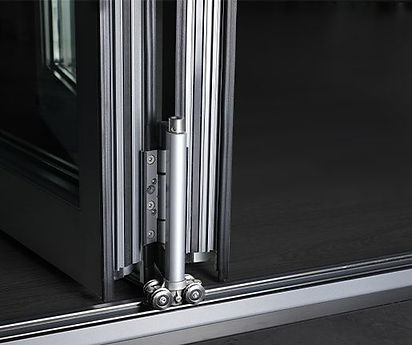

Bifold Window Roller
The easy to install high-load roller bearings are made from high-quality stainless steel and special abrasion-resistant materials, preventing breakage and allowing for a longer lifespan. A single sash can bear up to 120 kg. The height of the load-bearing roller is adjustable.
Case
