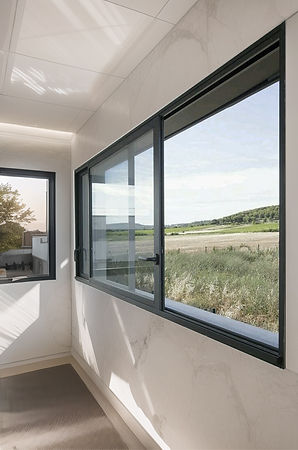

SLIDING
WINDOW SYSTEM
The independently developed hardware system and profile design of the sliding window provide excellent sealing and sound insulation, making it especially suitable for environments with high wind pressure and heavy rainfall. Its multi-point locking system enhances structural stability and security while allowing for large openings, ensuring an exceptional panoramic view. Ideal for use in high-rise buildings and modern residential projects.
Features
01 Sealing
Beatus has designed a sealing device for the upper and lower dead corners of conventional edging, enhancing sliding window sealing capability and overall product performance.
02 Drainage
Systematic Drainage Design: The lower frame's stepped drainage structure and outdoor independent track ensure smooth drainage for doors and windows, improving processing efficiency and optimizing costs.
03 Comfort
Special Sliding Components: Smooth, durable stainless steel rails facilitate easy operation, while the sliding window's special pulley kit enhances lifespan and wear resistance, ensuring a vibration-free sliding experience.
04 Safety
Multipoint Locking System: Increases locking strength and safety performance.
05 Operation
Anti-Misoperation Device: Prevents users from misoperating the handle, reducing the risk of damage and enhancing durability.
06 Upgrading
Strong Compatibility: Compatible with frameless SsW sliding windows and offers options for stainless steel high-permeability screens to effectively block mosquitoes.
Configurations
Available in a range of configurations, custom made andinstalled to your specification
Product Parameters
SW113P.N
Opening Sash Size & Weight
Width ≤2000mm
Height ≤2000mm
Weight ≤160Kg
Glass thickness ≤31mm
Acoustic performance GB/T 8485
RW up to 35dB
Waterproof performance GB/T 7106
Up to Level 3
Air permeability performance GB/T 7106
Positive pressure Up to Level 8
Negative pressure Up to Level 8
Wind load resistance performance GB/T 7106
Standard Edging Up to 2600Pa
Strengthening Edging Up to 4000Pa
SW113P
Opening Sash Size & Weight
Width ≤2000mm
Height ≤2000mm
Weight ≤160Kg
Glass thickness ≤31mm
Acoustic performance GB/T 8485
RW up to 37dB
Waterproof performance GB/T 7106
Up to Level 3
U value rating GB/T 8484
UW up to 2.1W/㎡k
Air permeability performance GB/T 7106
Positive pressure Up to Level 8
Negative pressure Up to Level 8
Wind load resistance performance GB/T 7106
Standard Edging Up to 2600Pa
Reinforced Edging Up to 4000Pa
Glass Options
Energy Efficiency
The type of glass in windows and doors significantly impacts energy efficiency and comfort. Selecting the right glass can reduce heating and cooling costs while enhancing livability.
Acoustic Glass
Selecting the right acoustic glass effectively reduces noise disturbance and enhances living comfort.
Safety & Security
Choosing the right glass reduces injury risks, resists breakage, and deters intruders, enhancing protection for your family.
Privacy Glass
Choosing the right privacy glass enhances personal space and prevents unwanted visibility, ensuring comfort and security.
Hardware System
Sliding hardware System 01
Hardware Detail
Bump Lock Recessed Pull Handle
Trouble-free installation and locking with a simple touch, the Recessed Pull Handle can be pre-installed with an anti-theft function for multiple door types.
Sliding Window Roller
High-quality materials and precision manufacturing create a smooth, quiet and worry-free sliding system.
Screening Options
Mesh options
Tuff mesh
Made of metal material, strong anti-theft performance, and high protection level.
However, it has relatively low light transmittance, suitable for commercial and residential use.
Frame options
Retractable
Can be stretched and paired with high-transparency mesh to provide an unobstructed view.
HD Tuff Mesh
Made of metal material, strong anti-theft performance, and higher protection level. It improves light transmittance by 30% compared to standard tuff mesh, suitable for projects that balance design and safety.
Frame
Compatible with tuff mesh or HD tuff mesh, significantly enhancing safety and anti-theft performance.
High-Transparency Mesh
Made of PET metal material, with average anti-theft and protection capabilities. It offers excellent light transmittance and can be used for retractable screens, suitable for design-oriented projects.
